ELECTRICAL TOOLS
RATCHET MODULAR CRIMPING PLIERS
• Carbon steel with hardened and tempered frame
• Chemically black finished surface
• PP/TPR Two-component grips
• Compact and durable W/KEY way in 8P modular holder
• Cut and strip wire by one operation, easy and efficient
• With round cable stripper
• For crimping modular plug as follows:
8P8C/RJ45, 8P6C, 8P4C, 8P2C;
6P6C/RJ12, 6P4C/RJ11, 6P2C
• Packing: blister card
| STOCK NO. | SIZE | QTY./CARTON |
| 38054 | 7.3“/185mm 8P/6P | 50 |

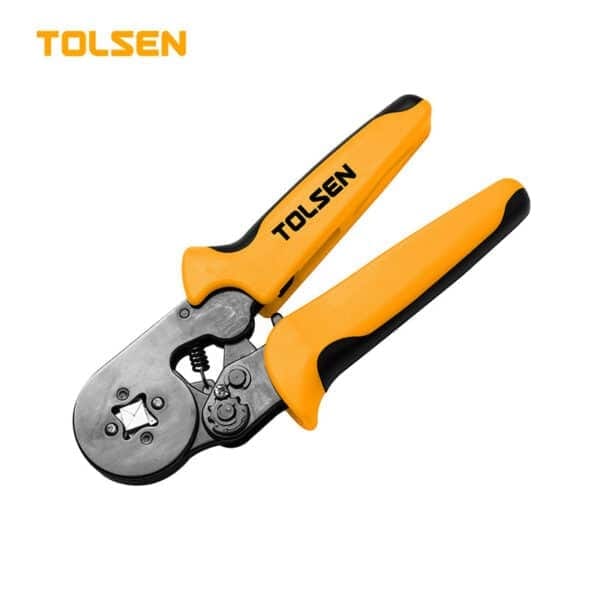

RATCHET CRIMPING PLIERS
• Applicable Wire Gauge: 0.25 to 10 mm² (AWG23-7)
• Self-Adjustable Ratchet: Featured with a star wheel for
adjusting crimping pressure to deliver precise crimping
and effectively prevents the ferrules from being over
crimped.
• Safety Lock & Quick Release: Handle can be locked by
squeezing the handle when not in use and store in carry
bag. A release trigger inside the handle, push up when
locking and quickly open the jaws
• ABS ergonomic handle
• Packing: blister card
| STOCK NO. | SIZE | QTY./CARTON |
| 38058 | 0.25-10mm2 | 40 |

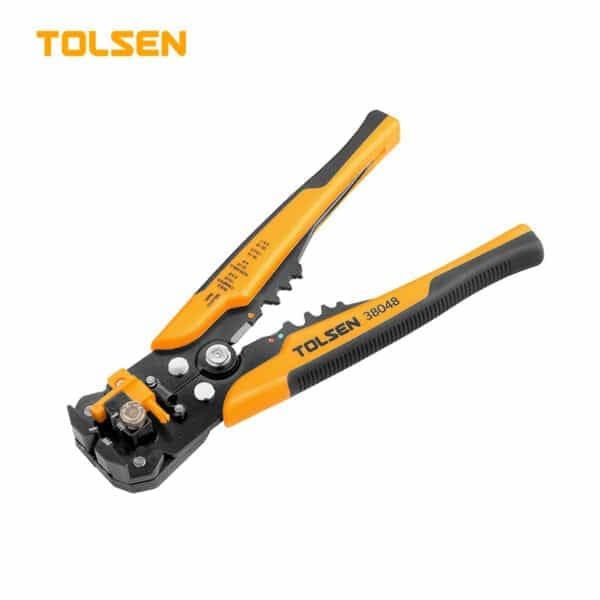

AUTO WIRE STRIPPER (INDUSTRIAL)
• 8" / 200mm •Zinc alloy head •Cr12MoV, HRC52-60° •Black finished surface •Two-component plastic handle •Stripping Gauge: 24-10AWG / 0.2-6mm² •Cutting/Crimping: 22-10AWG / 0.5-6mm² •Non insulated Terminal: 12-10AWG / 4-6mm² •Non insulated Terminal: 16-14AWG / 1.5-2.5mm² •Non insulated Terminal: 22-18AWG / 0.5-1mm² •Packing: double blister
| STOCK NO. | SIZE | QTY./CARTON |
| 38048 | 200mm, 8" | 40 |
RATCHET CRIMPING PLIERS
• Carbon steel with hardened and tempered jaws
• Continuous crimping at preset tension ensures accurate crimp
• Chemically black finished surface
• PVC grips
• Suitable for crimping insulated terminals as follows:
DIN 0.5-1.0 / 1.5-2.5 / 4-6 mm²
AWG 22-18 / 16-14 / 12-10
• Packing: blister card
| STOCK NO. | SIZE | QTY./CARTON |
| 38056 | 8.7"/220mm DIN 0.5-6mm² | 30 |
MULTI-FUNCTION STRIPPING COMBINATION PLIERS (INDUSTRIAL)
• Made of 60CR-V, forged
• Black finished and polished surface
• Comfortable Grip
• Wire Stripper and Crimper Capacity - Strips 10-18 AWG
solid and 12-20 AWG stranded wire
• Wire terminal crimping from 0.5 to 2.5mm²
• Crosscut Teeth - Help multiple wires stay in position while
twisting.
• Hardened teeth can also be used as smoothing and
shaping files
• Size: 8.5" / 215mm
• Packing: blister card
| STOCK NO. | SIZE | QTY./CARTON |
| 10294 | 215mm, 8.5" | 36 |

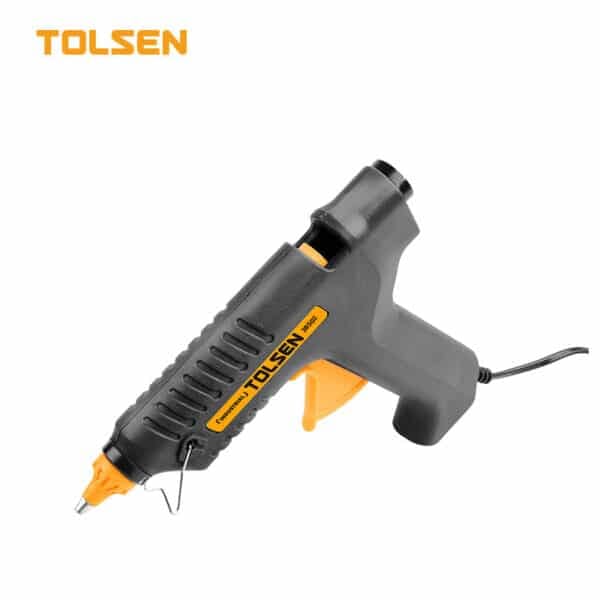

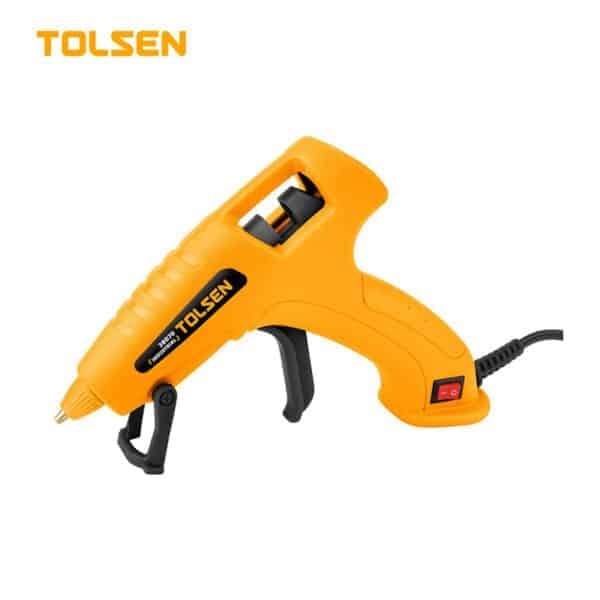

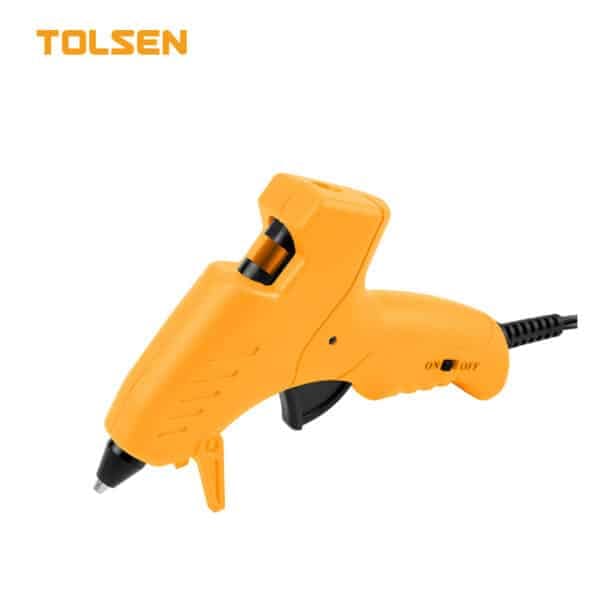

GLUE GUN (INDUSTRIAL)
CE approval
Input power: 20W
Rated Voltage: 220-240V
Frequency:50Hz
Gluing capacity:8-10g/min
Glue stick diameter: 7.0-7.5mm
With over current protection
High efficient PTC saves 50% power
3 mins fast pre-heating
Anti-leakage design
Ideal for adhesive attachment, model making, repairing, sealing and jointing
Mechanical feed system for sensitive metering and rapid application
Packing: double blister
| STOCK NO. | SIZE | QTY./CARTON |
| 38070 | 48 |

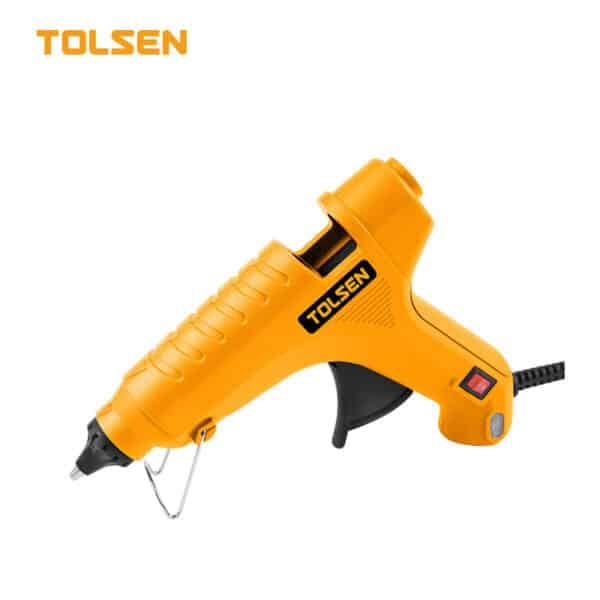

GLUE GUN
• CE approval
• Input power: 60W
• Rated Voltage: 220-240V
• Frequency:50Hz
• Gluing capacity:15-20g/min
• Glue stick diameter: 11.2mm
• With over current protection
• High efficient PTC saves 50% power
• 3 mins fast pre-heating
• Anti-leakage design
• Ideal for adhesive attachment, model making, repairing,
sealing and jointing
• Mechanical feed system for sensitive metering and rapid
application
• Packing: double blister
| STOCK NO. | SIZE | QTY./CARTON |
| 38071 | 30 |
DIGITAL MULTIMETER
• CE approval
• IEC-61010 CAT III 300V
• 3 1/2 digits LCD, Maximum display 1999
• Large LCD display
• Low Battery indication
• Overload protection
• Data-hold mode
• Auto power off
• Specifications
DC Voltage: 200m/2/20/200/300V
AC Voltage: 2/20/200/300V
DC Current: 200μ/2m/20m/200m/10A
AC Current: 2m/20m/200m/10A
Resistance: 200/2k/20k/200k/2M/20MΩ
Battery Check: 1.5V,9V Diode Check
• Battery : 6F22 (9V) included
• Test lead: plug black & red
• Packing: color box
| STOCK NO. | SIZE | QTY./CARTON |
| 38031 | 20 |
DIGITAL MULTIMETER
• CE approval
• 6000 counts
• DC Voltage: 60mv/6/60/600/1000V
• DC Current: 60u/6/60/600mA/10A
• AC Voltage: 6/60/600/750V
• AC Current: 60m/600m/10A
• Resistance: 600/6k/60k/600k/6M/60MΩ
• Capacitance: 60nf/600nf/6/60/600uf/6/60mf
• Frequency：60~ 1000Hz
• Non-contact voltage detection live line or neutral Line
distinguish
• LCD color display screen with back light
• Overload protection
• Low battery power indication
• Data hold
• NCV function
• Auto power off
• Flash light function
• Batteries : 4xAA (1.5V) included
• Packing: color box
| STOCK NO. | QTY./CARTON |
| 38033 | 30 |
DIGITAL CLAMP MULTIMETER
• IEC-61010 CATII 600V/CATIII 300V
• 3 1/2 digits LCD, Maximum display 1999
• Maximum opening size :28mm
• Low Battery Indication
• Overload protection
• Data-hold model
• Auto power off
• Specifications
AC Current: 2/20/200/400A±(1.5% +9)
AC Voltage: 2/20/200/600V±(1.2% +5)
DC Voltage: 200m/2/20/200/600V±(0.8% +1)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ±(1.0% +2)
Diode Check
• Batteries : 2xAAA (1.5V) included
• Test lead: plug black & red
• CE approved
• Packing: color box
| STOCK NO. | SIZE | QTY./CARTON |
| 38034 | 210x75.6x30mm | 20 |
AC DIGITAL CLAMP METER
• CE approval
• 6000 counts
• DC Voltage: 6/60/600/1000V
• AC Current: 60/600/1000A
• AC Voltage: 6/60/600/1000V
• Resistance: 6k/60k/600k/6M/60MΩ
• Capacitance: 60nf/600nf/6/60/600uf/6/60mf
• Frequency：60~ 1000Hz
• Temperature: -20-1000°C℃
• LCD color display screen with back light
• Overload protection
• Low battery power indication
• Data hold
• NCV function
• Auto power off
• Flash light function
• Batteries : 3xAAA (1.5V) included
• Packing: color box
| STOCK NO. | SIZE | QTY./CARTON |
| 38035 | 210x75.6x30mm | 20 |
LED FLASHLIGHT (INDUSTRIAL)
• CE approval
• Led Flashlight,1watt CREE
• Main material: aluminium
• Battery Voltage: 1.5V
• Battery type: 1xAA Battery (NOT included)
• Brightness: 50 Lumens
• Range: 50M
• Working time: 1.5 Hours
• Product N.W: 36g
• Waterproof: IP66
• Packing: double blister
| STOCK NO. | SIZE | QTY./CARTON |
| 60031 | Ø20x97.5mm | 60 |
