20V LITHIUM-ION PLATFORM

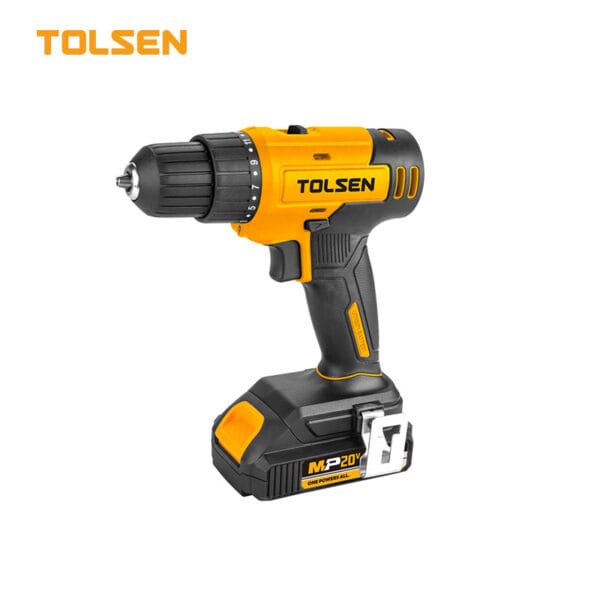

• Brushless motor • CE approval • Li-Ion battery • Metal keyless chuck • Spindle automatic locking • Step speed selection • Electronic speed adjustment • Reverse function • Variable torque • 3 modes (screwdriving / drilling / impact drilling) • LED light • LED battery power indicator • Belt hook • Includes: 2pcs 2.0Ah battery packs 1pc battery charger: 220-240VAC 50/60Hz, Europlug, 1hr fast charging HSS drill bits: 3,4,5,6mm Masonry drill bits: 5,6,8mm 6pcs bits: 5mm,6mm,PH1,PH2,PZ1,PZ2 1pcs magnetic nut socket: 1/4"x60mm • Packing: BMC+color sleeve

Voltage	20V
No-load speed	0-500/0-2000min-1
Impact rate	8000/32000 bpm
Chuck capacity	2-13mm (1/2”)
Max. torque	58 N.m (513in.lbs.)
Clutch	21+1+1 setting
Max. drilling capacity in wood	38mm (1-1/2”)
Max. drilling capacity in steel	13mm (1/2”)
Max. drilling capacity in concrete	13mm (1/2”)
QTY./CARTON	4
STOCK NO.	87254

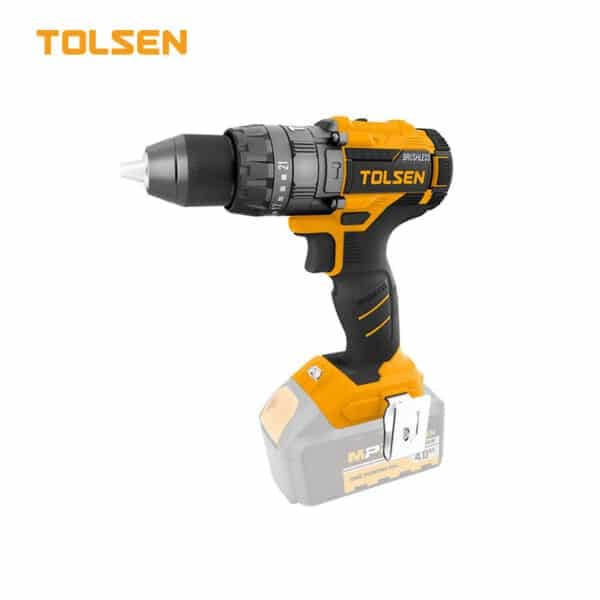

• Brushless motor • CE approval • Li-Ion battery • Metal keyless chuck • Spindle automatic locking • Step speed selection • Electronic speed adjustment • Reverse function • Variable torque • 3 modes (screwdriving /drilling/impact drilling) • LED light • LED battery power indicator • Belt hook • Battery/charger not included • Packing: color box

Rated voltage	20V
No-load speed	0-500/0-2000min-1
Impact rate	8000/32000 bpm
Chuck capacity	2-13mm
Max. torque	58 N·m
Clutch	21+1+1 setting
Max. drilling capacity in wood	38mm
Max. drilling capacity in steel	13mm
Max. drilling capacity in concrete	13mm
QTY./CARTON	6
STOCK NO.	87255

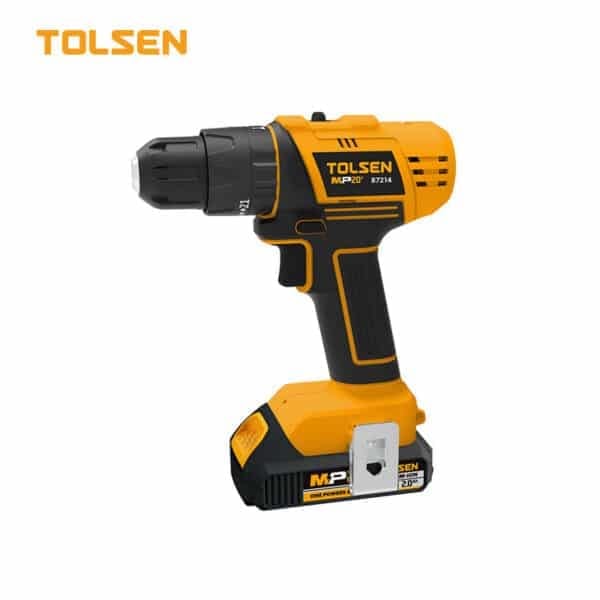

• CE approval • Li-Ion battery • Metal keyless chuck • Spindle automatic locking • Step speed selection • Electronic speed adjustment • Reverse function • Variable torque • 3 modes (screwdriving / drilling / impact drilling) • LED light • LED battery power indicator • Belt hook • Includes: 2pcs 2.0Ah battery packs 1pc battery charger: 220-240VAC 50/60Hz, Europlug, 1hr fast charging HSS drill bits: 3,4,5,6mm Masonry drill bits: 5,6,8mm 6pcs bits: 5mm,6mm,PH1,PH2,PZ1,PZ2 1pcs magnetic nut socket: 1/4"x60mm • Packing: BMC+color sleeve

Voltage	20V
No-load speed	0-450/0-1700min-1
Impact rate	7200/27200 bpm
Chuck capacity	2.0-13mm (1/2”)
Max. torque	55 N.m (487in.lbs.)
Clutch	21+1+1 setting
Max. drilling capacity in wood	35mm (1-3/8”)
Max. drilling capacity in steel	13mm (1/2”)
Max. drilling capacity in concrete	13mm (1/2”)
QTY./CARTON	5
STOCK NO.	87215

• Brushless motor • CE approval • Li-Ion battery • Metal keyless chuck • Spindle automatic locking • Step speed selection • Electronic speed adjustment • Reverse function • Variable torque • 2 modes (screwdriving / drilling) • LED light • LED battery power indicator • Belt hook • Includes: 1pc 2.0Ah battery packs 1pc battery charger: 220-240VAC 50/60Hz, Europlug, 1hr fast charging • Packing: color box

Voltage	20V
No-load speed	0-500/0-2000min-1
Chuck capacity	2-13mm (1/2”)
Max. torque	58 N.m (513in.lbs.)
Clutch	21+1 setting
Max. drilling capacity in wood	38mm (1-1/2”)
Max. drilling capacity in steel	13mm (1/2”)
QTY./CARTON	6
STOCK NO.	87252

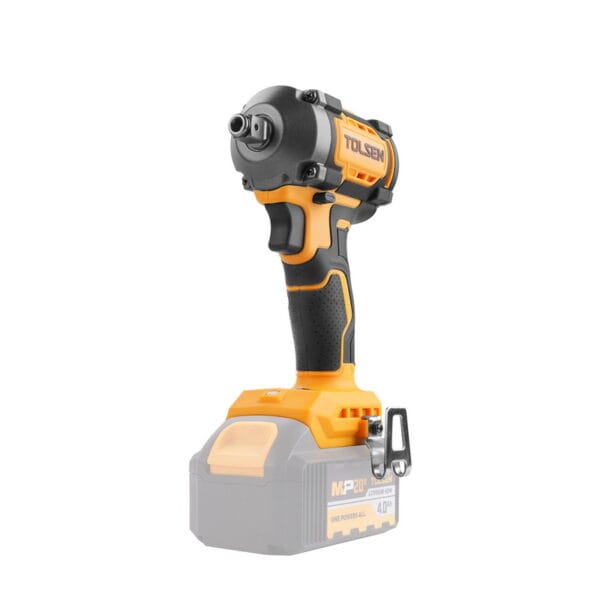

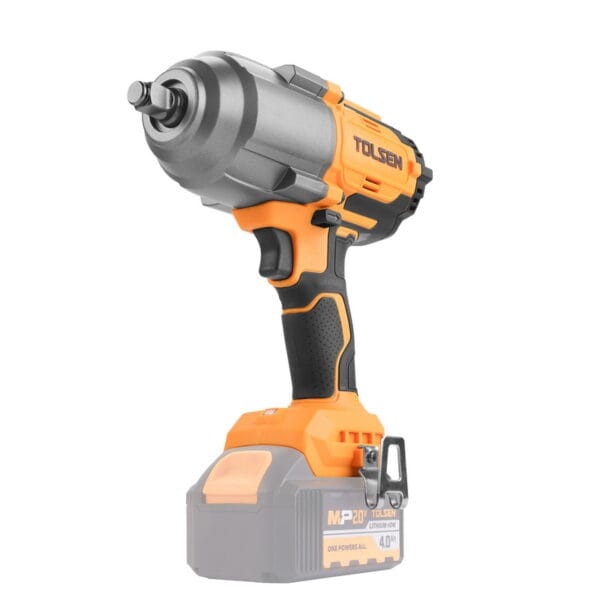

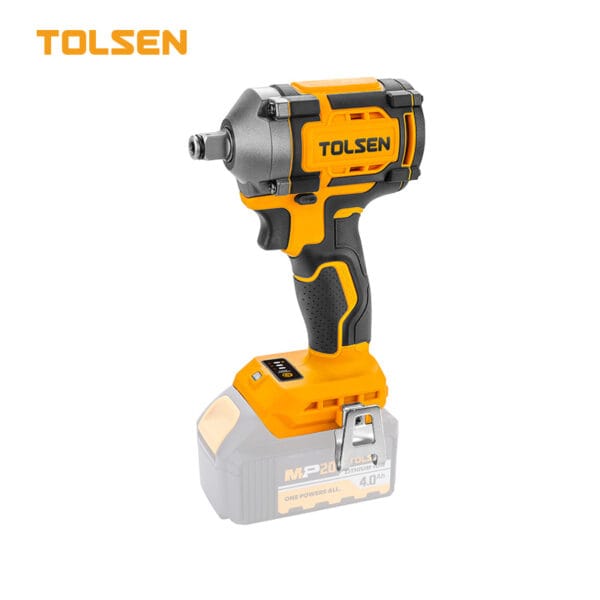

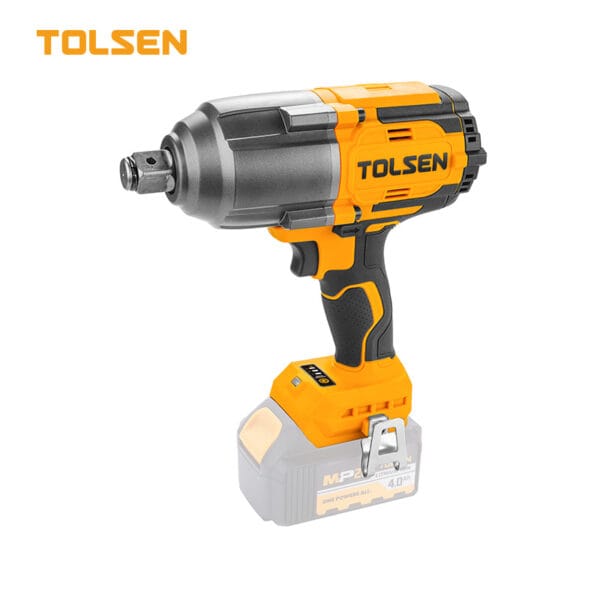

• Brushless motor • CE approval • Li-Ion battery • Electronic speed adjustment • Reverse function • Variable torque • LED battery power indicator • Integrated LED light • Belt hook • Includes: 2pcs 2.0Ah battery packs 1pc battery charger: 220-240VAC 50/60Hz, Europlug, 1hr fast charging • Packing: canvas bag with color box

Voltage	20V
No-load speed	0-2500min-1
Impact rate	0-3000 ipm
Max. torque	300 N.m (244ft.lbs.)
Square drive	1/2"
QTY./CARTON	4
STOCK NO.	87258

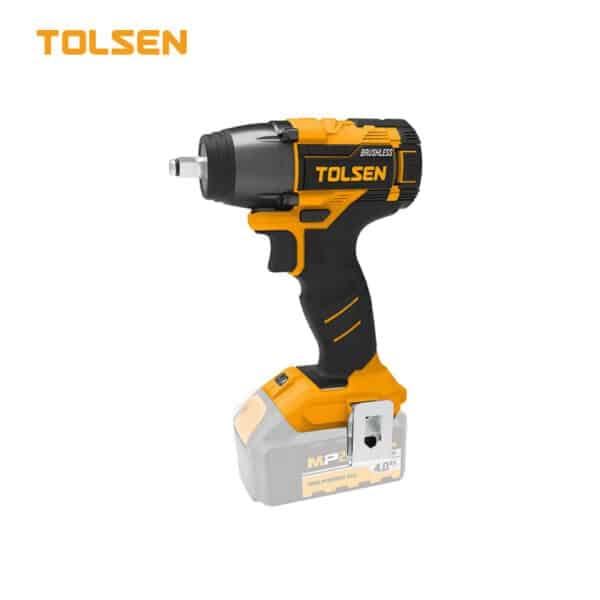

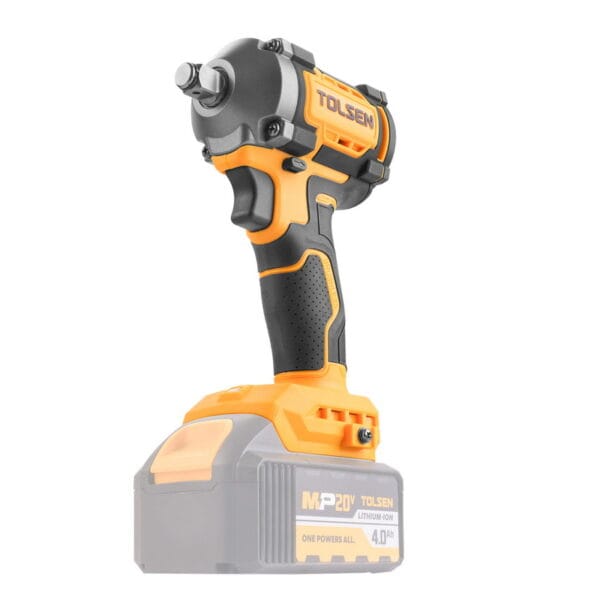

• Brushless motor • CE approval • Li-Ion battery • Electronic speed adjustment • Reverse function • Variable torque • LED battery power indicator • Integrated LED light • Belt hook • Battery/charger not included • Packing: color box

Rated voltage	20V
No-load speed	0-2500min-1
Impact rate	0-3000 ipm
Max. torque	300 N·m
Square drive	1/2"
QTY./CARTON	6
STOCK NO.	87259

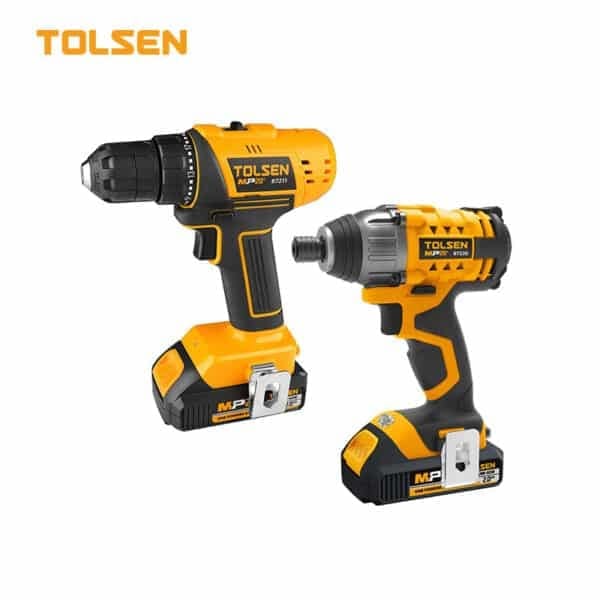

• CE approval • Contains: 1pc Li-ion cordless drill Li-Ion battery Keyless chuck Step speed selection Electronic speed adjustment Reverse function Variable torque 2 modes (screwdriving / drilling) • LED light Belt hook Li-ion cordless impact driver Li-Ion battery 1/4" hexagonal tool holder Electronic speed adjustment Variable torque Reverse function Integrated LED light • Belt hook Includes: 2pcs 2.0Ah battery pack 1pc battery charger: 220-240VAC 50/60Hz, Europlug, 1hr fast charging LED battery power indicator • Packing: canvas bag with color box

Li-ion cordless drill(87211)
Voltage	20V
No-load speed	0-400/0-1500min-1
Chuck capacity	0.8-10mm
Max. torque	35 N.m (310in.lbs.)
Clutch	21+1 setting
Max.drilling capacity in wood	25mm (1”)
Max.drilling capacity in steel	10mm (3/8”)

Li-ion cordless impact driver(87220)
Voltage	20V
No-load speed	0-2900 min-1
Impact rate	3000 ipm
Max. torque	200 N·m
Chuck type	1/4" Hex
QTY./CARTON	4
STOCK NO.	87239

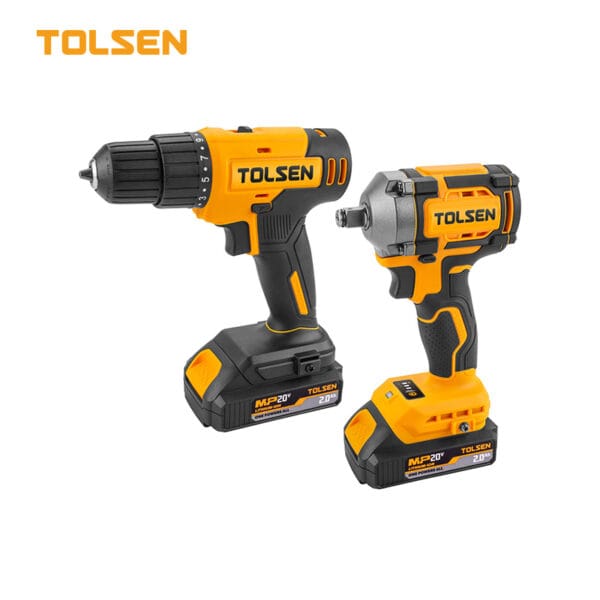

• CE approval • Contains: 1pc Li-ion cordless drill Li-Ion battery Keyless chuck Step speed selection Electronic speed adjustment Reverse function Variable torque 2 modes (screwdriving / drilling) • LED light Belt hook 1pc Li-ion cordless impact wrench Li-Ion battery Electronic speed adjustment Reverse function Variable torque LED light Belt hook • Includes: 2pcs 2.0Ah battery pack 1pc battery charger: 220-240VAC 50/60Hz, Europlug, 1hr fast charging LED battery power indicator • Packing: canvas bag with color box

Li-ion cordless drill (87211)
Voltage	20V
No-load speed	0-400/0-1500min-1
Chuck capacity	0.8-10mm
Max. torque	35 N.m (310in.lbs.)
Clutch	21+1 setting
Max.drilling capacity in wood	25mm (1”)
Max.drilling capacity in steel	10mm (3/8”)

Li-ion cordless impact wrench (87222)
Voltage	20V
Square drive	1/2"
No-load speed	0-2500 min-1
Impact rate	3000 ipm
Max. torque	330 N.m (244ft.lbs.)
QTY./CARTON	4
STOCK NO.	87240

• Brushless motor • CE approval • Soft start • Restart protection • Safety clutch • Quick adjustable protective casing • Soft grip • Battery/charger not included • With 1pc side handle and 1pc wrench • Packing: color box

Voltage	20V
Diameter of wheel	125mm / 5"
No-load speed	10000min-1
Spindle thread	M14
QTY./CARTON	4
STOCK NO.	87278

• Brushless motor • CE approval • Soft start • Restart protection • Safety clutch • Quick adjustable protective casing • Soft grip • Battery/charger not included • With 1pc side handle and 1pc wrench • Packing: color box

Voltage	20V
Diameter of wheel	100mm / 4"
No-load speed	3000/ 9500 /min
Spindle thread	M10
QTY./CARTON	6
STOCK NO.	87274
