POWER TOOLS
HAMMER DRILL
CE/GS approval
Rated Voltage: 230V
Frequency:50HZ
No Load Speed: 0-3000r/min
Impact Frequency: 0-48000bpm
With impact function switch
chuck capacity Ø : 13mm
Max in steel: 13mm
Max in concrete: 13mm
Max in wood: 25mm
Plug & cable : VDE approved 2m
Accessories contain
1pc side handle
1pc 13mm KEY CHUCK
1pc depth guage(plastic)
1pc instruction manual
Packing: colox box
| STOCK NO. | SIZE | QTY./CARTON |
| 79501A | 500w | 6 |
| 79502A | 710w | 6 |

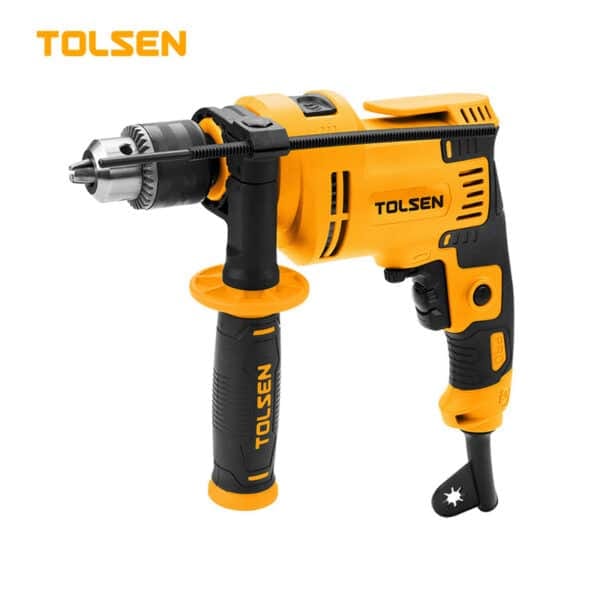

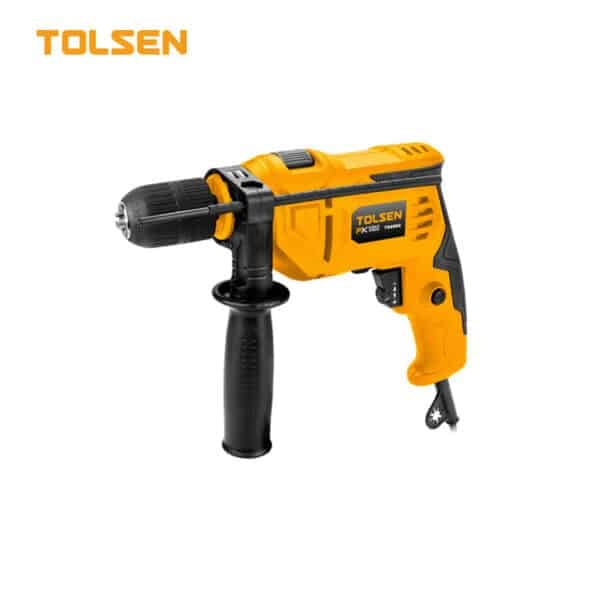

13MM CHUCK 650W HAMMER DRILL (INDUSTRIAL)
• CE approved
• Rated voltage: 230-240V
• Frequency: 50/60Hz
• Input power: 650W
• Impact rate: 48000bpm
• No load speed: 0-3000/min
• Chuck: Ø13mm
• Max in wood: 25mm
• Max in steel: 13mm
• Max in concrete: 13mm
• Accessories contain
• 1pc side handle
• 1pc 13mm KEY CHUCK
• 1pc depth guage(plastic)
• Packing: colox box
| STOCK NO. | SIZE | QTY./CARTON |
| 79504 | 650W | 8 |
HAMMER DRILL (INDUSTRIAL)
CE approval
Rated Voltage: 230-240V
Frequency:50/60Hz
No Load Speed: 0-3000r/min
Impact Frequency: 0-48000bpm
With impact function switch
chuck capacity Ø : 13mm
Max in steel: 13mm
Max in concrete: 13mm
Max in wood: 25mm
Plug & cable : VDE approved 2m
Accessories contain
1pc side handle
1pc 13mm KEY CHUCK
1pc depth guage(plastic)
Packing: colox box
| STOCK NO. | SIZE | QTY./CARTON |
| 79505 | 750W/13mm | 8 |
| 79505-BS | 750W/13mm | 8 |
| 79506 | 850W/13mm | 8 |
| 79506-BS | 850W/13mm | 8 |

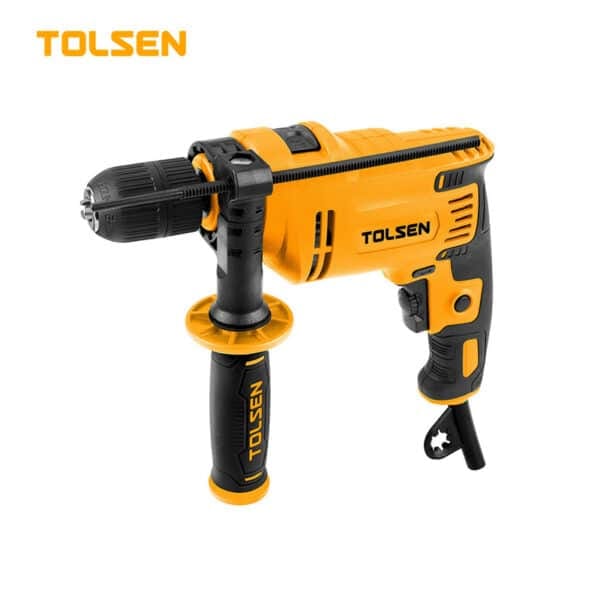

HAMMER DRILL AUTOMATIC CHUCK
• CE approval
• Rated Voltage: 230-240V
• Frequency:50/60Hz
• No Load Speed: 0-3000r/min
• Impact Frequency: 0-48000bpm
• With impact function switch
• chuck capacity Ø : 13mm
• Max in steel: 13mm
• Max in concrete: 13mm
• Max in wood: 25mm
• Plug & cable : VDE approved 2m
• Accessories contain
• 1pc side handle
• 1pc 13mm KEY CHUCK
• 1pc depth guage(plastic)
• Packing: colox box
| STOCK NO. | SIZE | QTY./CARTON |
| 79505A | 750W/13mm | 8 |
| 79505A-BS | 750W/13mm | 8 |
| 79506A | 850W/13mm | 8 |
| 79506A-BS | 850W/13mm | 8 |
DRILL STAND
• For use with drills • Sturdy base with slots for fitting machine vice • Suitable for TOLSEN hammer drill 79501/79501A/7 9502/79502A/79503/79503A/79505/79505A /79506/79506A/79505-BS/79505A-BS/79506- BS/79506A-BS • Column height: 510mm • Column diameter: 25mm • Depth of feed: 60mm • Collar diameter: 43mm and 38mm • Base size: 22x16cm • Net weight: 3kg • Aluminum die casting body • Packing: color box
| STOCK NO. | SIZE | QTY./CARTON |
| 10500 | 38-43mm | 4 |
ROTARY HAMMER (INDSUTRIAL)
• CE approval
• Input power: 800W
• Rated Voltage: 220-240V
• Frequency:50HZ
• No load speed: 0-1200r/min
• Impact rate: 0-5500bpm
• Impact energy: 2.8J
• Drilling capacity:
• Steel: 13mm
• Concrete: 26mm
• Wood: 40mm
• SDS plus chuck
• Plug & cable : VDE approved 2m
• Accessories contain
1pc point chisel: 13x240mm
1pc flat chisel: 13x240mm
3pcs SDS-plus drill bits: 6x140mm, 8x140mm,
110x140mm
1pc auxiliary handle
1pc depth gauge
• Packing: BMC with color sleeve
| STOCK NO. | SIZE | QTY./CARTON |
| 79510 | 800W | 4 |
| 79510-BS | 800W/26mm | 4 |

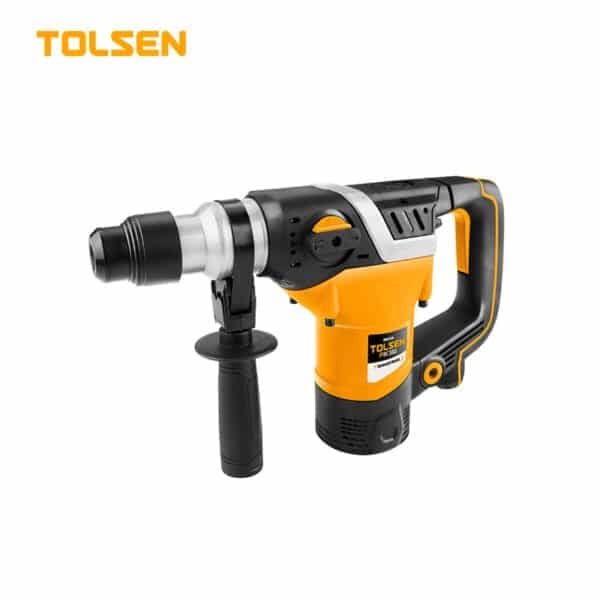

ROTARY HAMMER (INDUSTRIAL)
• CE approval
• Input power: 1100W
• Rated Voltage: 230V
• Frequency:50Hz
• No load speed: 770r/min
• Impact rate: 4200bpm
• Impact energy: 4.5J
• Drilling capacity:
• Steel: 13mm
• Concrete: 28mm
• Wood: 45mm
• SDS plus chuck
• Plug & cable : VDE approved 2m
• Accessories contain
1pc point chisel: 14x250mm
1pc flat chisel: 14x250mm
3pcs SDS-plus drill bits: 8x150mm, 10x150mm,
12x150mm
1 pair Carbon brush
1pc dust cover
1 bottle lubricating oil
1pc wrench
1pc instruction manual
• Packing: BMC with color sleeve
| STOCK NO. | SIZE | QTY./CARTON |
| 88530 | 1100W/28mm | 3 |
| 85530-BS | 1100W/28mm | 3 |

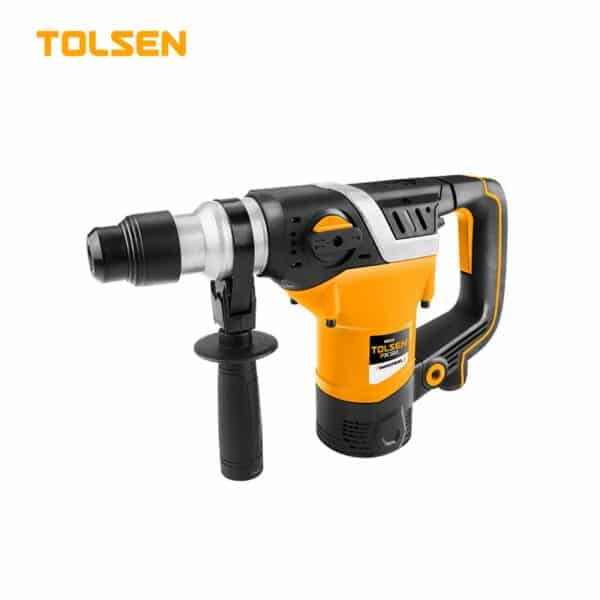

ROTARY HAMMER (INDUSTRIAL)
• CE approval
• Input power: 1500W
• Rated Voltage: 230V
• Frequency:50Hz
• No load speed: 780r/min
• Impact rate: 4300bpm
• Impact energy: 5.5J
• Drilling capacity:
• Steel: 13mm
• Concrete: 32mm
• Wood: 50mm
• SDS plus chuck
• Plug & cable : VDE approved 2m
• Accessories contain
1pc point chisel: 14x250mm
1pc flat chisel: 14x250mm
3pcs SDS-plus drill bits: 8x150mm, 10x150mm,
12x150mm1
pair Carbon brush
1pc dust cover
1 bottle lubricating oil
1pc wrench
• Packing: BMC with color sleeve
| STOCK NO. | SIZE | QTY./CARTON |
| 88531 | 1500W/32mm | 3 |
| 88531-BS | 1500W/32mm | 3 |

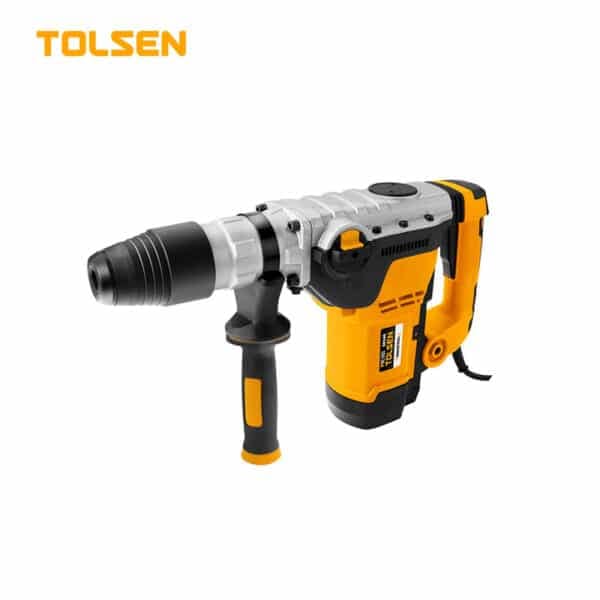

ROTARY HAMMER
• CE approval • Input power: 1250W • Rated Voltage: 220-240V • Frequency:50-60HZ • No load speed: 0-480/min • Impact rate: 1500-3100bpm • Impact energy: 1-9.0J • SDS MAX chuck • Concrete: 40mm • Plug & cable: VDE approved 2m • Net weight: 6.5kg • Accessories contain 1pc point chisel: 18x320mm 1pc flat chisel: 18x320mm 1pc grease pot 1pc dust protection 1 pair Carbon brush 1 bottle lubricating oil 1 pc wrench • Packing: BMC with color sleeve
| STOCK NO. | SIZE | QTY./CARTON |
| 88540 | 1250W/40mm | 2 |

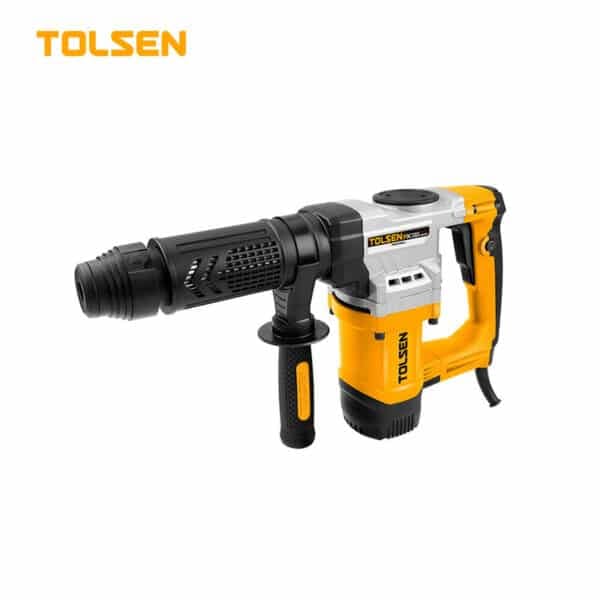

DEMOLITION HAMMER HEX CHUCK
• CE approval • Input power: 1050W • Rated Voltage: 230V • Frequency:50HZ • Impact rate: 4000bpm • Impact force: 10J • Net weight: 6kg • HEX chuck system • Lock-off switch • Heat insulation • Plug & cable : VDE approved 2m • Accessories contain 1pc auxiliary handle 1pc point chisel: 18x280mm 1pc flat chisel: 22x18x280mm 1 pair Carbon brush 1 pc wrench • Packing: BMC with color sleeve
| STOCK NO. | SIZE | QTY./CARTON |
| 88550 | 1050W | 2 |
| 88550-BS | 1050W | 2 |

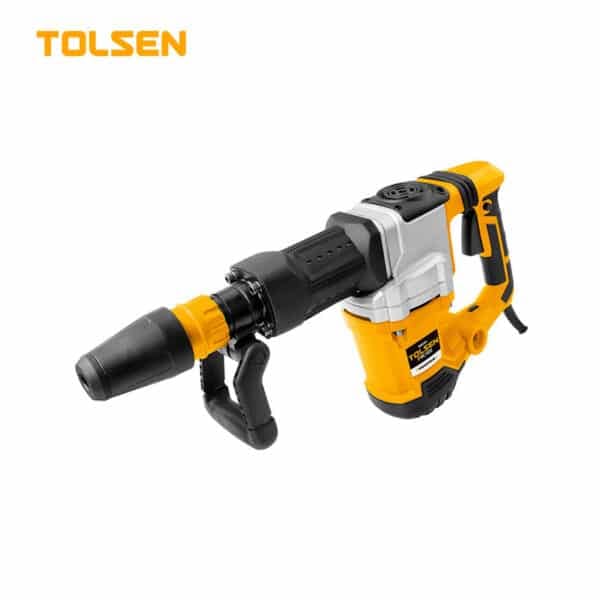

Demolition hammer SDS-MAX chuck (INDUSTRIAL)
CE approval
Input power: 1500W
Rated Voltage: 230V
Frequency:50HZ
Impact rate: 900-2100bpm
Impact force: 45J
Net weight: 11kgs
SDS-MAX chuck system
Lock-off switch
Quick reversing function
Plug & cable : VDE approved 2m
Accessories contain
1pc auxiliary handle
1pc point chisel: 18x280mm
1pc flat chisel: 22x18x280mm
1 pair Carbon brush
1pc hex key
1pc instruction manual
Packing: BMC with color sleeve
| STOCK NO. | SIZE | QTY./CARTON |
| 88551 | 1500W | 1 |

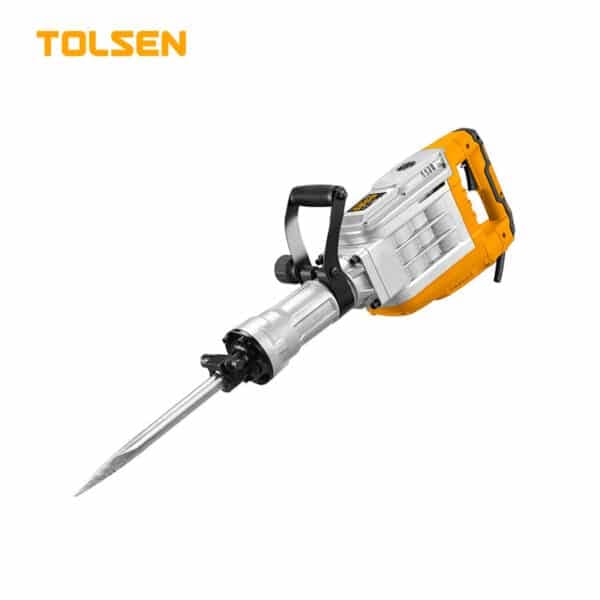

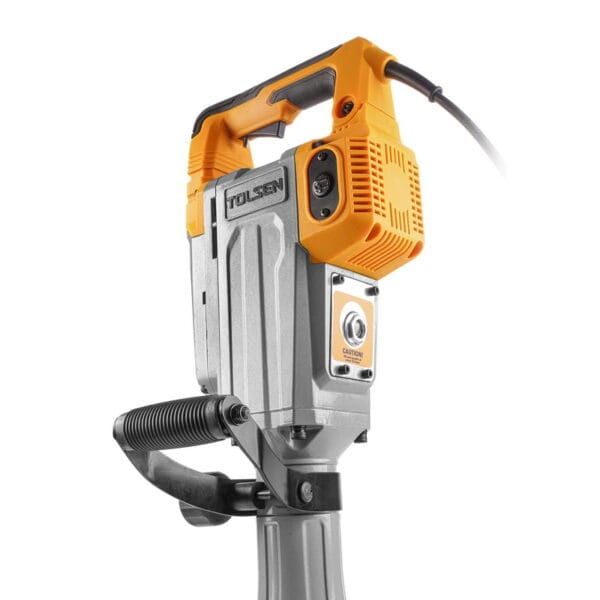

DEMILITION HAMMER (INDUSTRIAL)
CE approval
Input power: 1600W
Voltage: 230V
Frequency: 50Hz
Impact rate: 1850bmp
Impact force: 60J
HEX chuck system
Net weight: 16kgs
Accessories contain:
1pc point chisel: 30x410mm
1pc flat chisel: 30x410mm
1 pair Carbon brush
1 bottle lubricating oil
1pc wrench
2pcs hex keys
Packing: High qulity BMC box with wheels
| STOCK NO. | SIZE | QTY./CARTON |
| 88552 | 1600W | 1 |
| 88552-BS | 1600W | 1 |
HEAVY-DUTY DEMILITION HAMMER (INDUSTRIAL)
CE approved
Input power: 1700W
Voltage: 230V
Frequency: 50Hz
Impact rate: 1650bmp
Impact force: 60J
HEX chuck system
Net weight: 18kgs
Accessories contain:
1pc point chisel: 30x410mm
1pc flat chisel: 30x410mm
1 pair Carbon brush
1pc wrench
2pcs hex keys
Packing: High qulity BMC box with wheels
| STOCK NO. | SIZE | QTY./CARTON |
| 88553 | 1700W | 1 |
ANGLE GRINDER (INDUSTRIAL)
CE approval
Input power: 1200W
Voltage: 230V
Frequency: 50Hz
No load speed: 3000-11500RPM
Disc diameter:125mm
Self-lock-preventing switch
Plug & cable: CE approved 2m
Accessories contain:
1 pair Carbon brush
1pc auxiliary handle
1pc wrench
1pc hex key
Packing: color box
| STOCK NO. | SIZE | QTY./CARTON |
| 79527 | 1200w | 4 |
ANGLE GRINDER
• CE approval
• Input power: 950W
• Voltage: 230V
• Frequency: 50Hz
• No load speed: 9500r/min
• Disc diameter:125mm
• Spindle thread:M14
• Plug & cable: CE approved 2m
• Power-off protection
• Accessories contain:
1 pair Carbon brush
1pc auxiliary handle
1pc wrench
• Packing: color box
| STOCK NO. | SIZE | QTY./CARTON |
| 88580 | 950W/125mm | 8 |
| 88580-BS | 950W/125mm | 8 |
ANGLE GRINDER
• CE approval
• Input power: 2100W
• Voltage: 220-230V
• Frequency: 50Hz
• No load speed: 8000/min
• Disc diameter:180mm
• Spindle thread:M14
• Self-lock-preventing switch
• Soft starter
• Plug & cable: CE approved 2m
• Accessories:
1 pair carbon brush
1pc side handle
1pc wrench
1pc wheel guard
1pc hex key 6mm
• Packing: color box
| STOCK NO. | SIZE | QTY./CARTON |
| 79523 | 2100W/180mm | 2 |
