MEASURING TOOLS

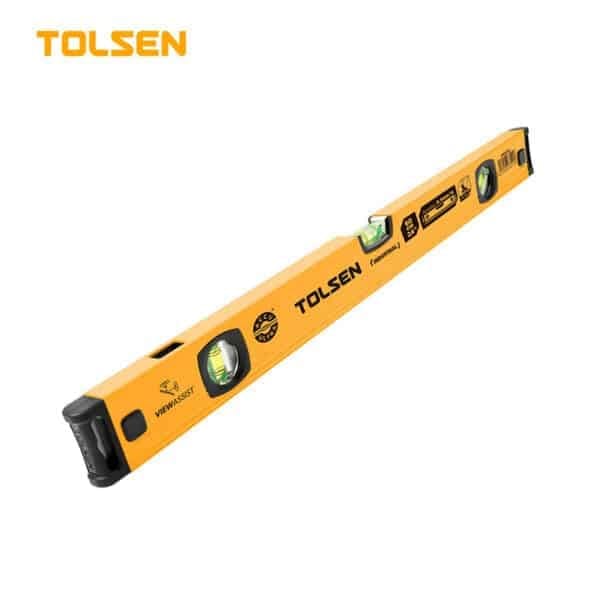

SPIRIT LEVEL (INDUSTRIAL)
• Heavy duty Aluminum frame with powder coated
• Miled bottom for high accuracy
• Accuracy: 0.5 mm/m
• Three vial : 90 °,180°,45°
• Larger solid acrylic vial
• Dual view vial function for a true plumb reading
• Shockproof end caps
• Packing: shrink
| STOCK NO. | SIZE | QTY./CARTON |
| 35231 | 40cm,16" | 20 |
| 35233 | 60cm,24" | 20 |
| 35234 | 80cm,32" | 20 |
| 35235 | 100cm,40" | 20 |
| 35236 | 120cm,48" | 20 |
| 35237 | 150cm, 60" | 20 |
| 35238 | 180cm, 72" | 20 |
| 35239 | 200cm, 80" | 20 |

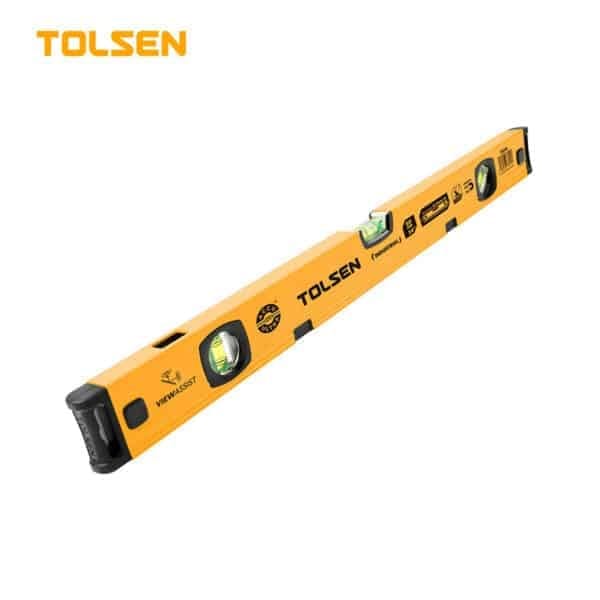

SPIRIT LEVEL WITH MAGNETIC (INDUSTRIAL)
• Heavy duty Aluminum frame with powder coated
• Miled bottom for high accuracy
• Accuracy: 0.5 mm/m
• Three vial : 90 °,180°,45°
• Larger solid acrylic vial
• Dual view vial function for a true plumb reading
• With 2pcs strong magnets
• Shockproof end caps
• Packing: shrink
| STOCK NO. | SIZE | QTY./CARTON |
| 35243 | 60cm,24" | 20 |
| 35246 | 120cm,48" | 20 |

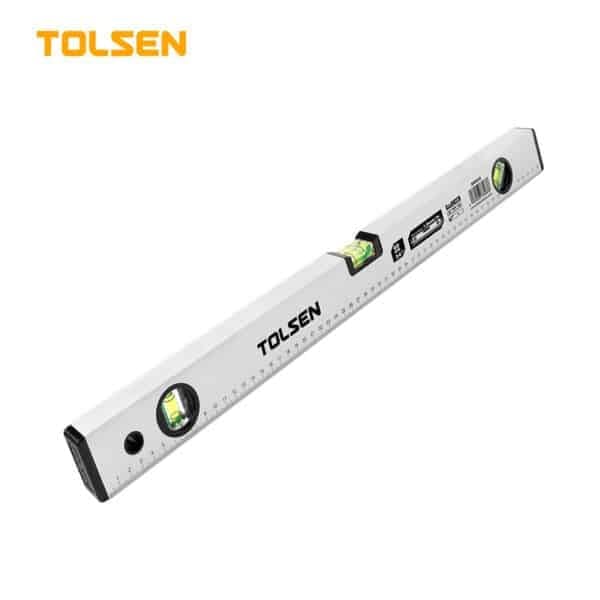

SPIRIT LEVEL WITH MAGNETIC (INDUSTRIAL)
• With magnetic
• Spirit level (industrial quality)
• Heavy duty aluminium frame
• Thickness: 1.5mm
• Accuracy: 0.5mm /m
• Three vial: 90 °,180°,45°
• Two milled surface
• Humanized rubber handle
• Anti-shock end caps
• Packing: shrink
| STOCK NO. | SIZE | QTY./CARTON |
| 35111 | 40cm,16" | 20 |
| 35112 | 60cm,24" | 20 |
| 35113 | 80cm,32" | 20 |
| 35114 | 100cm,40" | 20 |
| 35115 | 120cm,48" | 20 |
3D LASER LEVEL (INDUSTRIAL)
• CE approval
• 3 x 360° Multiple line switching functions
• Power Source: Li-ion battery, with USB charging
• Laser unit: Osarm
• Wavelenght: 520nm Green light
• Beam Accuracy: H/V Line ±3mm/10m
• Expanded Angle: H&V 360°
• Max. working distance: 30m(without detector)
• Operating time: 1C: 15h / 2C: 10h / 3C: 5h
• Ingression Protection Rate: IP54
• Operating Temperature: -10°C - +50°C
• Storage Temperature: -20°C - +70°C
• Outdoor pulse mode
• 1pc instrument tripod with 1/4 "and 5/8" threaded
holes at bottom
• 1pc back clip
• 1pc 3.7V lithium battery + charging cable
• 1pc green target board
• 1pc green glass
• Packing: blow mould case
| STOCK NO. | WAVELENGTH | MAX. WORKING DISTANCE | QTY./ CARTON |
| 35155 | Green 520nm | 30m | 5 |
GREEN-BEAM SELF-LEVELING TWO-PLANE LEVELING AND ALIGNMENT-LINE LASER (INDUSTRIAL)
• CE approval
• Green Beam Laser —more brighter than standard red beams
• Two 360° Plane（Horizontal and Vertical ） — For a wide array of level and vertical alignment applications
• Self-levels and indicates out-of-level condition; locks when switched off
• Manual Mode — Locks lines for use at any angle
• Includes Positioning Device with strong magnets
• Laser unit: Osram
• Wavelenght: 520nm
• Beam Accuracy: H/V Line ±3mm/10m
• Expanded Angle: H&V 360°
• Max. working distance: 30m(without detector)
• Power Supply: 4xAA battery
• Operating time: 1C: 8h /2C: 4h
• Ingression Protection Rate: IP54
• Operating Temperature: -10°C - +50°C
• Storage Temperature: -20°C - +70°C
• Pulse function
• Model Function: switchable manual model
• Packing: blow mould case
| STOCK NO. | WAVELENGTH | MAX. WORKING DISTANCE | QTY./CARTON |
| 35154 | Green 520nm | 30m | 6 |

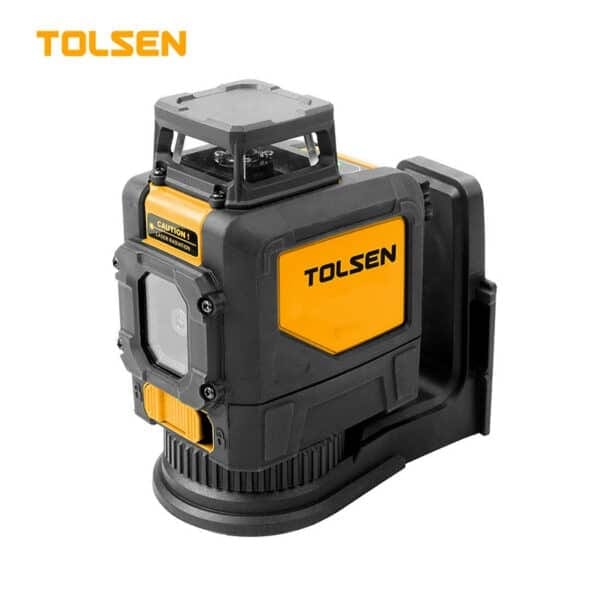

GREEN-BEAM SELF-LEVELING 360° HORIZONTAL CROSS-LINE LASER LEVEL (INDUSTRIAL)
• CE approval
• Green Beam Laser —more brighter than standard red beams
• One 360° Horizontal Plane and One Vertical Line — For a wide array of level and/or alignment applications
• Self-levels and indicates out-of-level condition; locks when switched off for secure laser transport
• Manual Mode — Locks lines for use at any angle
• Include a positioning device with strong magnets
• Laser unit: Osram
• Wavelenght: 520nm
• Beam Accuracy: H/V Line ±3mm/10m
• Expanded Angle: C: 360° V: 130°
• Max. working distance: 30m(without detector)
• Power Supply: 4xAA battery
• Operating time: C: 7.5h /V: 11.5h /C&V: 4.5h
• Ingression Protection Rate: IP54
• Operating Temperature: -10°C - +50°C
• Storage Temperature: -20°C - +70°C
• Pulse function
• Model Function: switchable manual model
• Packing: blow mould case
| STOCK NO. | WAVELENGTH | MAX. WORKING DISTANCE | QTY./CARTON |
| 35153 | Green 520nm | 30m | 6 |
SELF-LEVELING CROSS-LINE LASER LEVEL
• CE approval
• Provides maximum line visibility in standard working conditions
• Easy-to-Use Laser Setup Modes — Projects vertical, horizontal and cross lines.Lines can be projected separately or together for a variety of level and alignment applications
• Self-levels and indicates out-of-level condition; locks when switched off for secure laser transport
• Manual Mode — Locks lines for use at any angle
• Include a positioning device with strong magnets
• Red beam laser
• Wavelength: 635nm
• Beam Accuracy: H/V Line ±3mm/10m
• Expanded Angle: H&V 120°
• Max. working distance: 20m
• Power Supply: 2xAA battery(Not included)
• Operating time: 8h
• Ingression Protection Rate: IP54
• Operating Temperature: -10°C - +50°C
• Storage Temperature: -20°C - +70°C
• Model Function: switchable manual model
| STOCK NO. | WAVELENGTH | MAX. WORKING DISTANCE | QTY./CARTON |
| 35141 | Red 635nm | 20m | 12 |
INSTRUMENT TRIPOD
• Material: Aluminium
• Max operation height: 1425mm,56"
• Closed height 545mm, 21.5"
• Stretch range: 280mm
• Extendable Height, to expand the tripod to work at different heights ranging from 21.5 to 56 In(545-1425mm).
• Adjustment Crank, use it for precise height adjustability
• Steady Adjustable Base, Swivel, adjust and tighten product for steady measurement applications
• Collapsible legs and Lightweight.
• Packing: in a canvas bag, make the tripod easy to carry and store.
| STOCK NO. | SIZE. | QTY./CARTON |
| 35165 | 545-1425mm | 10 |
LASER DISTANCE METER (INDUSTRIAL)
• CE approval
• Size: 120x48.5x28.5mm
• Functions:
distance measurement,
area measurement volume measurement,
pythagorean measurement,
addition and subtraction calculation,
continuous measurement,
20 groups of data storage
• Drop-resistance 1.5m
• Horizontal bubble
• Adjustable baseline switch
• Measuring units: m//in
• Measuring accuracy: ±2.0mm
• Battery type: 2xAAA(1.5V)
• Battery life: 5000 measurements
• Backlight
• Features:
tiny size
extremely easy to use
so rubber housing
1.6 inch screen (black-on-white)
• Packing: color box
| STOCK NO. | MEASURING RANGE | QTY./CARTON |
| 35176 | 0.2-60m / 197ft | 16 |
LASER DISTANCE METER
• CE approval
• Material: ABS & Rubber
• Size: 100x32.5x22mm
• Functions: Measures distance / area / volume
• Measuring range: 0.2-20m / 0.65-65.5ft
• Meausring accuracy: ±2mm
• Measuring units: m / ft
• Battery type: 2xAAA 1.5V
• Battery life: 5000 measurements
• Backlight
• Extremely easy to use
| STOCK NO. | MEASURING RANGE | QTY./CARTON |
| 35172 | 0.2-20m, 0.65-65.5ft | 20 |
INFRARED THERMOMETER
• CE approval
• Temperature measurement range: -50°C~800°C (-58°F~1472°F)
• LCD color display screen with back light
• Response time<0.5S
• Laser:<1mW(630nm~650nm) 12 point
• Auto power off
• Low battery power indication
• Data hold
• Temperature upper / lower limit alarm
• Battery : 6F22 (9V) included
• Packing: color box
| STOCK NO. | TEMPERATURE MEASUREMENT RANGE | QTY./CARTON |
| 35196 | -50°C~800°C (-58°F~1472°F) | 10 |
