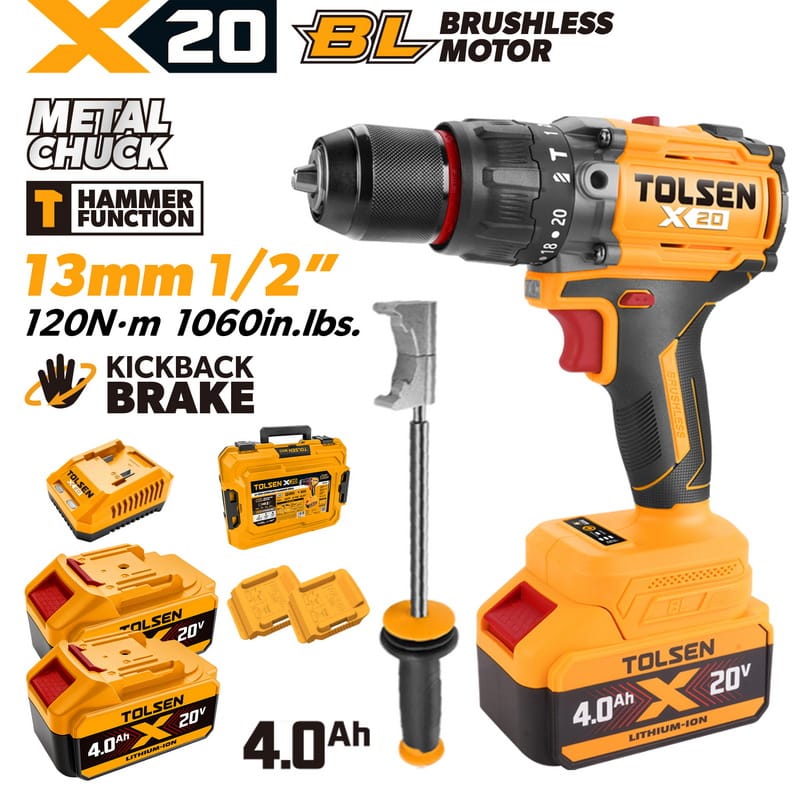

20V X20 Brushless Cordless 1/2″ Hammer Drill, 120 N·m (2×4.0Ah)

• Brushless motor
• Self-Tightening All-Metal Chuck
• Aluminum Alloy Gearbox Head Housing
• Forward/Reverse, Spindle Lock
• Built-in LED Work Light, Battery Fuel Gauge on Base
• Switch: Variable Speed Trigger
• Design: Ergonomic Grip
• Includes:
• 1pc cordless hammer drill
• 2pcs 4.0Ah batteries
• 2pcs battery protective cover
• 1pc Battery charger 220-240VAC 50/60Hz, Europlug
• 1pc side handle
• Packing: Plastic box + color label

Rated voltage20V
No-Load Speed0-450 / 0-1750min-1
Clutch20+1+1 Setting
Max. Torque120 N·m / 1060in.lbs
Chuck capacity1.5-13mm / 1/2″
Impact rate26000 bpm
Max. drilling capacity in wood50mm / 2″
Max. drilling capacity in steel20mm / 3/4″
Max. drilling capacity in Concrete20mm / 3/4″
QTY./CARTON3
STOCK NO.96418 (96018+97422+97404 x2)
SKU: 96418 Category:
Attachment

96418-Instruction Manual

Download

96018-Parts List-6H13

Download
