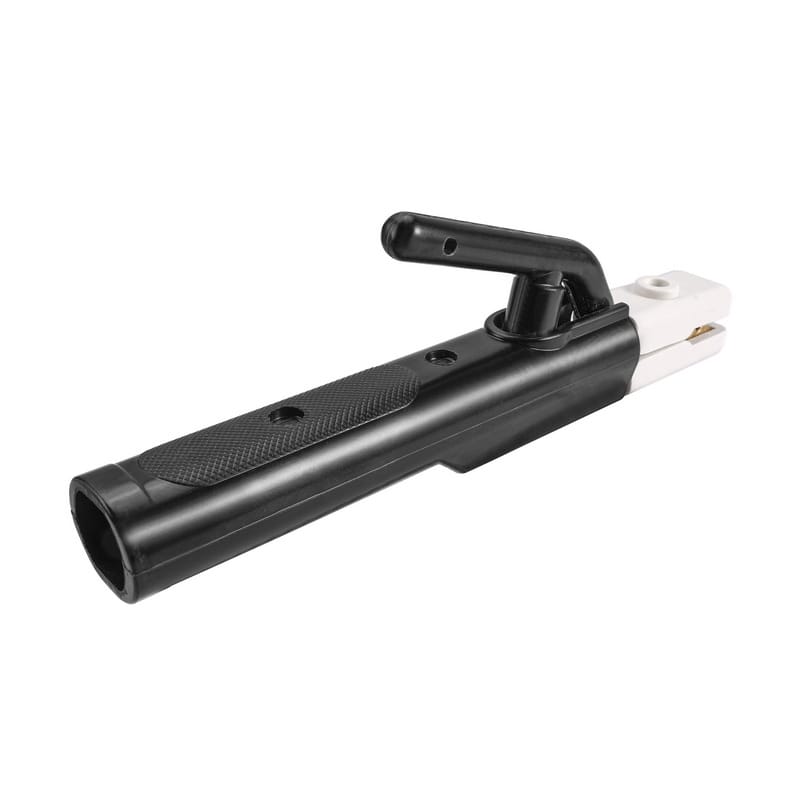

500A ELECTRODE HOLDER

• IGBT Inverter technology • CE approval • Input voltage: 230V • Frequency: 50/60Hz • No load voltage: 60V • Duty cycle: 20% @ 40°C • Accessories: 1pc electrode holder with cable 1pc earth clamp with cable 1pc wire brush 1pc helmet • Packing: color box

STOCK NO.	Rated input capacity (KVA)	No load voltage (V)	Output current (A)	Max output current (A)	Duty cycle	Electrode size (mm)	QTY./ CARTON
44011	5.1	60	10-120	120	20% @ 40°C	ø1.6-3.2	1
44012	6	60	10-140	140	20% @ 40°C	ø1.6-4	1
44013	7	60	10-160	160	20% @ 40°C	ø1.6-4	1

• Impacted resistant shell • Anti wear • Moveable type glass • Packing: polybag with color sticker

STOCK NO.	SIZE	QTY./CARTON
45086	108x50x3mm	25

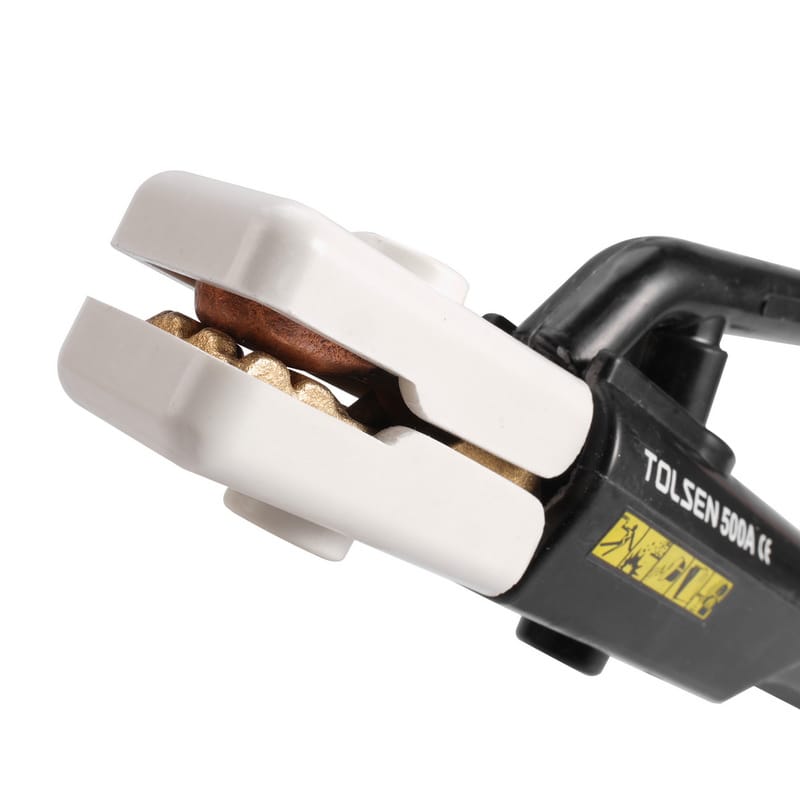

CE approval Material: Upper iron, Lower brass Nylon grip Includes 2pcs hex keys Electrodes through:3/32"-5/16" (2.5mm-8mm) Packing: color box

STOCK NO.	LENGTH	AMP CAPACITY	QTY./CARTON
44929	270mm	500A	25

• E7018 • Excellent for welding carbon and low alloy steel structure • 5kgs Packing: one box

STOCK NO.	SIZE	KGS/CARTON	QTY./CARTON
44963	3.2x350mm	20kgs	4
