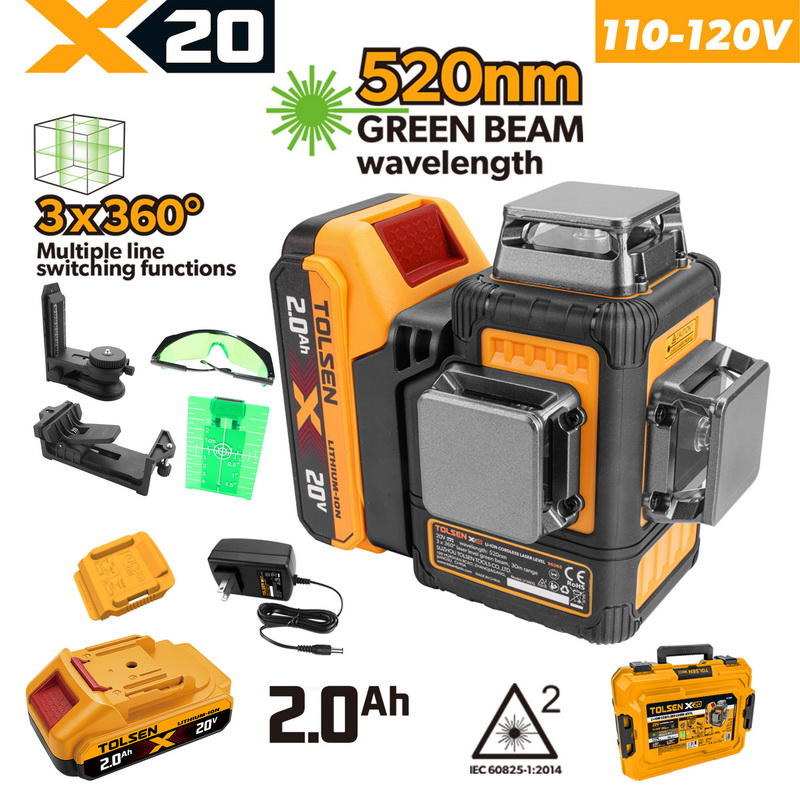

20V X20 Cordless Green Laser Level (2.0Ah, 110-120V)
• Protection Rating: IP54 (Tool Only. Not waterproof with battery installed.)
• Mode: Switchable between 1c / 2c / 3c modes
• Pulse Function: For extended outdoor use with a laser receiver.
• Includes:
• 1pc cordless Laser level
• 1pc 2.0Ah battery
• 1pc battery protective cover
• 1pc Battery charger 110-120VAC, 60Hz
• 1pc Nylon stand
• 1pc sheet metal cup
• 1pc green target board
• 1pair green glasses
• Packing: Plastic box + color label
| Voltage | 20V |
| Laser Accuracy | H/V Line: ±3 mm @ 10 m |
| Laser Class | Class II, <1 mW |
| Self-Leveling Range | ±4° |
| Laser Sweep Angle | H & V: 360° |
| Max. Working Distance | 30 m |
| Runtime | ≥15 hrs (with 20V DC 2.0Ah, 3C Battery) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Drop Resistance | 1.5 m |
| QTY./CARTON | 3 |
| STOCK NO. | 97086 (96086+97430+97402) |
97086-Instruction Manual
