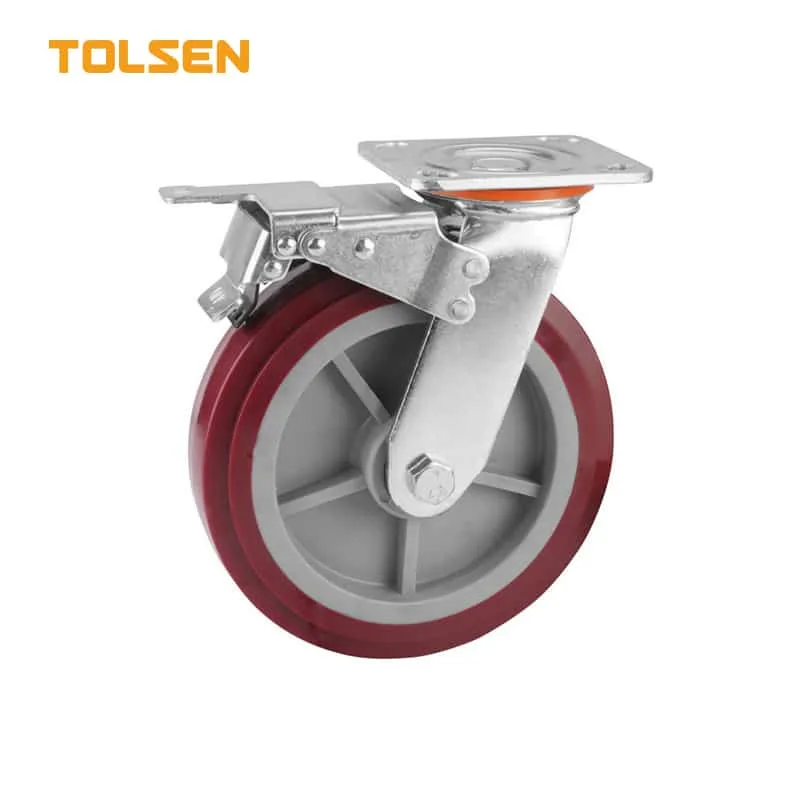

SWIVEL CASTER WITH BRAKE (INDUSTRIAL)
• Material: PP + PU
• Needle bearing
• Top plate: 115x100x5.5mm
• Pitch of holes: 85x72mm
• Packing: color label
| SIZE |  |  |  |  |
| 125mm / 5″ | 115x100x5.5mm | 85x72mm | 18×10.5mm | 5.5mm |
| 150mm / 6″ | 115x100x5.5mm | 85x72mm | 18×10.5mm | 5.5mm |
| 200mm / 8″ | 115x100x5.5mm | 85x72mm | 18×10.5mm | 5.5mm |
| STOCK NO. | SIZE | LOAD CAPACITY | TOTAL HEIGHT | QTY./CARTON |
| 62943 | 125mm / 5″ | 240kg | 164mm | 6 |
| 62946 | 150mm / 6″ | 300kg | 192mm | 6 |
| 62949 | 200mm / 8″ | 380kg | 240mm | 6 |
